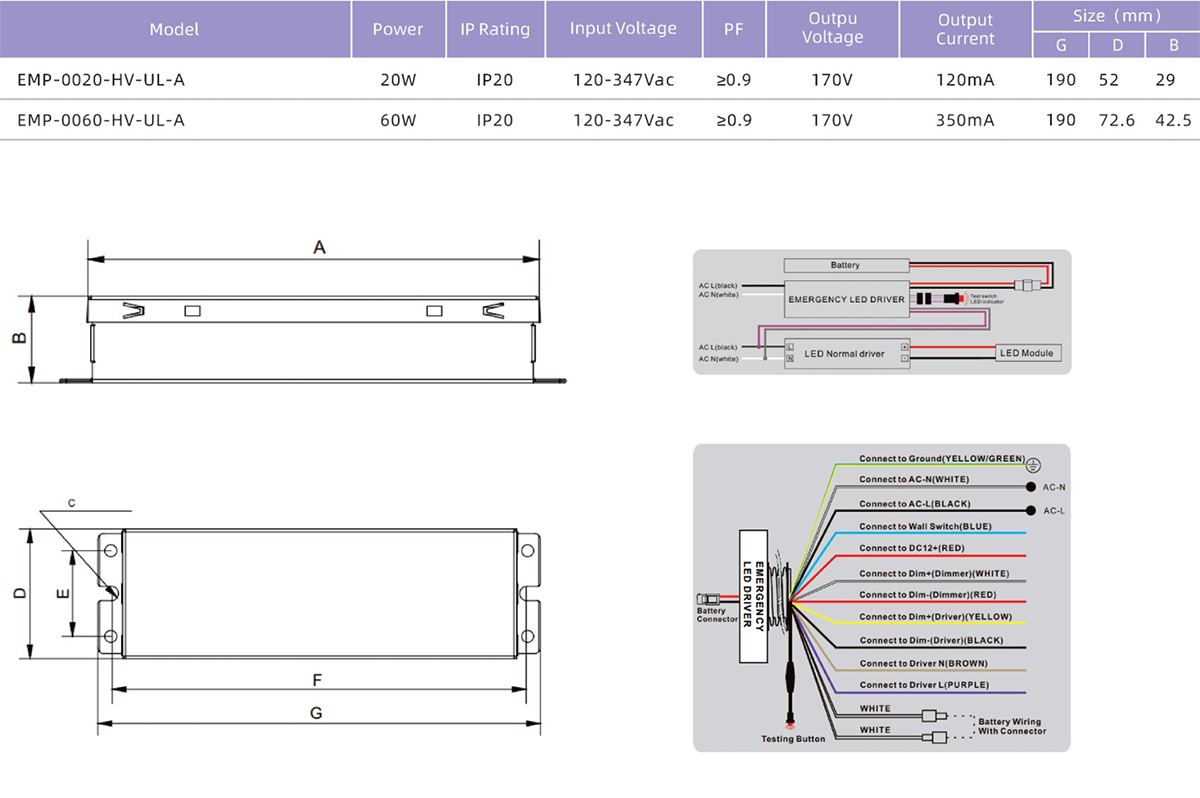

High-Voltage Emergency Discrete Series

Features

  • Wide input range 100~380V AC

  • Output Voltage,170Vdc

  • Isolated Safe Charging

  • External LiFePO₄: and TLB optional

  • Over charge protection,over discharge protection,and short circuit protection.

  • Indicator shows a variety working modes

  • Intelligent emergency automatic detection function, selftest function

  • Emergency time 90 minutes

  • Metalcase with lP20

  • Certified: UL924,FCC,ENEC

  • Life time>50,000 hrs.and 5 years warranty


Applications

  • Commercial Lighting

  • Home Lighting
