| Model | Vin (V) | Iin (A) | PF | Vout(V) | Iout(mA) | Pout(W) | Ta(℃) | Type TL / Tc(℃) | Eff |
|---|---|---|---|---|---|---|---|---|---|
| SLE 10-I200 120-277 W SR | 120-277 | 0.08-018 | 0.95 | 30-50 | 200 | 10 | -20~55 | 85/58 | 85% |
| SLE 20-I400 120-277 W SR | 120-277 | 0.09-0.20 | 0.95 | 30-50 | 400 | 20 | -20~55 | 85/58 | 85% |
| SLE 30-I600 120-277 W SR | 120-277 | 0.11-0.24 | 0.95 | 30-50 | 600 | 30 | -20~55 | 85/58 | 85% |
| SLE 30-I1050 120-277 W SR | 120-277 | 0.08-0.34 | 0.95 | 18-29 | 1050 | 30 | -20~55 | 85/58 | 85% |
| SLE XX-IYYYY 120-277 W SR | 120-277 | 0.08-0.34 | 0.95 | 18-52 | 200-1050 | 10-30 | -20~55 | 85/58 | 85% |

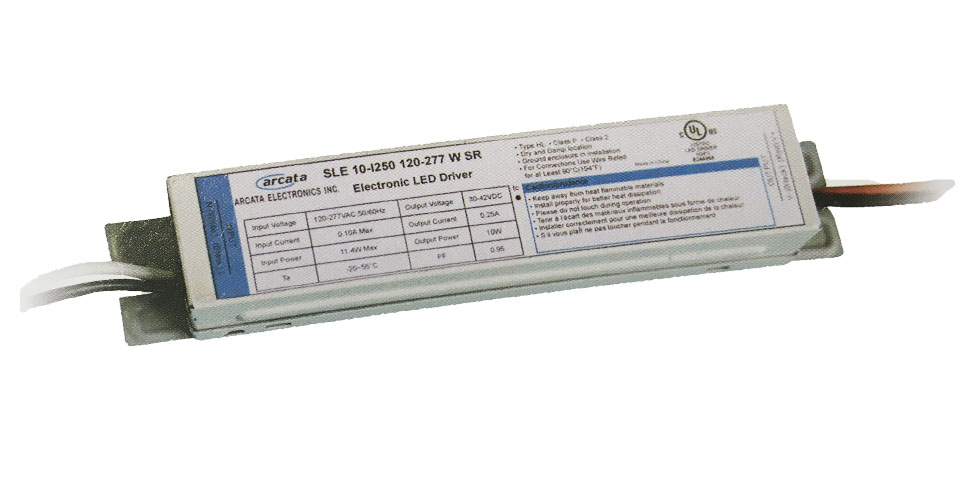

SLE 10-30 W SR Series
-
-
line Voltage：120~277Vac 50/60Hz
Constant Current Output
High Power Factor, Low THD
Auto Recovery
Open Circuit Protection
Short Circuit Protection
Output Current Tolerance:±5%
UL/cUL,Type TL,UL Class 2
|
