| Model | Vin (V) | Iin (A) | PF | Vout(V) | Iout(mA) | Pout(W) | Ta(℃) | Type TL / Tc(℃) | Eff |
|---|---|---|---|---|---|---|---|---|---|
| SL 15×2-I300 120-277 W D1 M | 120-277 | 0.13-0.30 | 0.95 | 20-48 | 300 | 15*2 | -20~55 | 90 | 87% |
| SL 20×2-I500 120-277 W D1 M | 120-277 | 0.2-0.48 | 0.95 | 20-40 | 500 | 20*2 | -20~55 | 90 | 87% |
| SL 15×3-I300 120-277 W D1 M | 120-277 | 0.18-0.43 | 0.95 | 20-48 | 300 | 15*3 | -20~55 | 90 | 87% |
| SL 20×3-I500 120-277 W D1 M | 120-277 | 0.25-0.57 | 0.95 | 20-40 | 500 | 20*3 | -20~55 | 90 | 87% |
| SL 15×4-I300 120-277 W D1 M | 120-277 | 0.25-0.57 | 0.95 | 20-48 | 300 | 15*4 | -20~55 | 90 | 87% |
| SL XXxC-IYYYY 120-277 W D1 M | 120-277 | 0.1-0.60 | 0.95 | 20-54 | 200-700 | 60 Max | -20~55 | 90 | 87% |

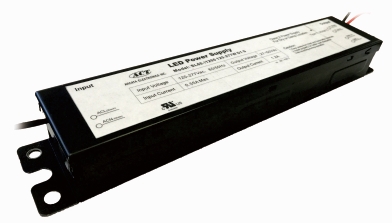

SL M-channel Series
-
-
Input Voltage：120-277 VAC
Input frequency is 50Hz-60Hz
0-10V Dimmable
High Power Factor,Low THD
Auto Recovery
Short circuit protection
Over-current protection
UL/cUL,Type TL,UL Class 2,Class P
|
